Plotting a helix round a straight line segment with particles

Discussion in 'Development' started by Sandertv, Dec 4, 2016.

  1. Sandertv

    Sandertv Zombie Pigman Poggit Reviewer

    Messages:
    786
    GitHub:
    Sandertv
    Hello!
    I'm experimenting with some particle shapes, circles, spheres, other shapes, and I found myself in a sticky situation. So what I want is this: I want to make a spiral using the direction vector from a player. Basically when a player hits the ground with for example a stick, particles spiral to about... well... I'm not exactly sure, it doesn't matter exactly how far it has to go.
    I have made a couple attempts to do this (all failed however, too badly) but I couldn't really find a good way. I've tried to do it using something like this, which did work in some way: (I forgot what exactly I did as I changed it later)
    PHP:
          $pos $p->getPosition();

    $direction $p->getDirectionVector();
          for(
    $i 0$i <= 360$i += 2) {

    $pos $pos->add($direction);

    $x = (cos(deg2rad($i)) * 0.5) + $pos->x;

    $z = (sin(deg2rad($i)) * 0.5) + $pos->y;

    $p->getLevel()->addParticle(new FlameParticle(new Vector3($x$pos->1$z)));
          }
        }
    This did did make the right shape (I think, as I could only see a curve), but it went out so far that I could only see a curve in the line of particles, which is because there is so much space between the particles thanks to the getDirectionVector(), which gives like a block space in between cause it uses the block the player is looking at. I know my code is not efficient and well... Not working, but it's pretty much a first timr for me and I don't know too much about this.
    I hope someone can help me with this, thanks in advance!

    SOFe likes this.
  2. SOFe

    SOFe Administrator Staff Member PMMP Team Poggit Admin

    Messages:
    1,968
    GitHub:
    sof3
    If you are referring to this shape (helix):

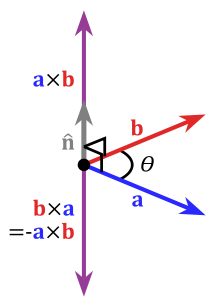

    where the axis is of any direction (including oblique) such that the helix also rotates along with the axis, I would make use of cross product.
    I would present my calculation mathematically (I calculated this a long time ago, and I forgot to define some variables, and now I already forgot what those variables represent, and right now I'm not in the mood to calculate it again):
    EDIT: This image is wrong. In the last equation, (x / |x|) sin(2nk[pi]) should be appended with a [cross] v.

    In code it would be like this:
    PHP:
    function helix(Vector3 $aVector3 $bfloat $radiusfloat $cycles, callable $spawnParticle) {

    $density 0.2;

    $x $b->subtract($a);

    $length $x->length();


    $otherCross = new Vector3(100);
      if(
    $otherCross->cross($x)->lengthSquared() == 0// if parallel

    $otherCross = new Vector3(010);

    $v $otherCross->cross($x)->normalize()->multiply($radius);

    $u $v->cross($x->normalize());

      for(
    $i 0$i <= $x$i += 0.1) {

    $k $i $length;

    $p $a->add($x->multiply($k))
          ->
    add($v->multiply(cos($cycles $k M_PI)))
          ->
    add($u->multiply(sin($cycles $k M_PI)));

    $spawnParticle($p);
      }
    }
    Again, if you found any mistakes, point them out. I wrote down my calculations a few months ago, and I have already forgotten what I was doing with u and v.

    Last edited: Dec 5, 2016
  3. SOFe

    SOFe Administrator Staff Member PMMP Team Poggit Admin

    Messages:
    1,968
    GitHub:
    sof3
    After thinking again, I think v is a vector of r long perpendicular to x, and u is a vector of r long perpendicular to both x and v. Hence x cross v would result in a vector perpendicular to both, with length |x| |v|, so I divide it with |x| to get back the length of r.
